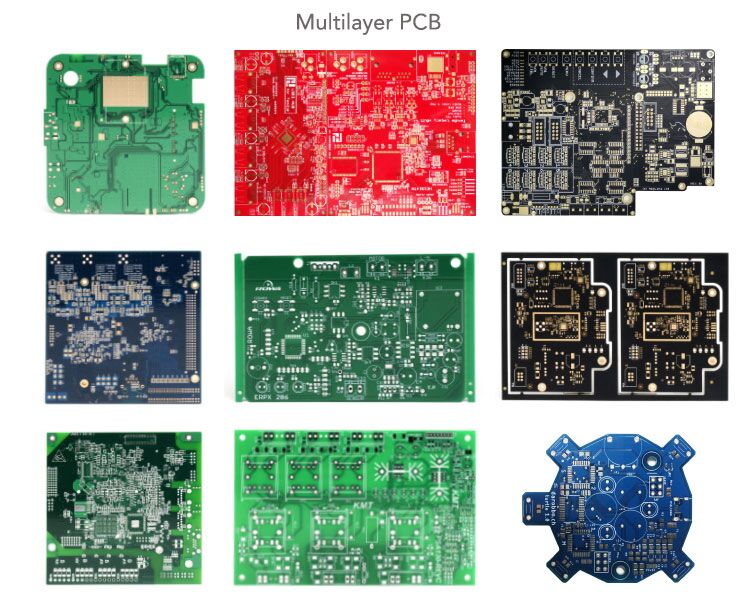

Multilayer Printed Circuit Board RF High Frequency PCBs Supplier
As a 20 years PCB manufacturer in China, FASTPCBA is providing the latest printed circuit board technologies and highest quality standards for electronics industry. You can trust us to meet your demands, from small volume to mass production whatever the simplest PCB boards or the most complex.
20 Years Experience
Accept Stardard: IPC III, Military, Automotive, Medcial, We offer you expanded PCB capabilities: Rigid PCB, Flexible, Rigid-flex, HDI board, High TG PCB
Up to 48 layer prototype PCB
Manufacture PCB board up to 56 layer, Raw material: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metal core
Up to 18 layer mass production
Support PCB surface process: HASL-LF, ENIG, Plating gold, Immersion tin, Immersion silver, ENIPIG, OSP
PCB Manufacturing Capability:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC |
| Board Cutting | Number of layers | 1-48 |
Min.thickness for inner layers
(Cu thickness are excluded) | 0.003”(0.07mm) |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| Component Sourcing | Yes |
| Tolerance of PCB | ±5% |
| Max Size of Finish Board | 700*460mm |
| MOQ | NO MOQ (1pcs) |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
| Min Line/Space | 0.075/0.075mm |

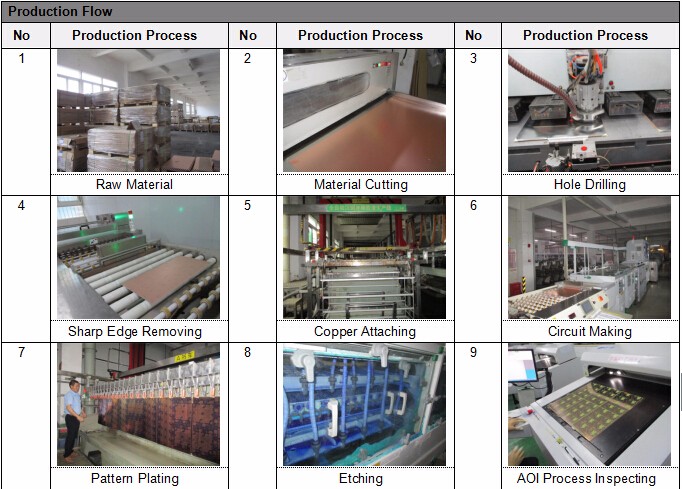

PCB Manufacturing Process
Our Advantages
1. Flexible Production plan to clients.
2. Best price to clients
From 1 unit to 100K units level, we would stand by to support you through the manufacturing field. We have a flexible production process that enables the quick turnkey solution to the personal makers or small startup companies with small production orders.
By the standard manufacturing solutions, our customers obtain the benefits of supply chain consolidation, consistent manufacturing efficiency, and lower costs.
Product Tags:
|
|

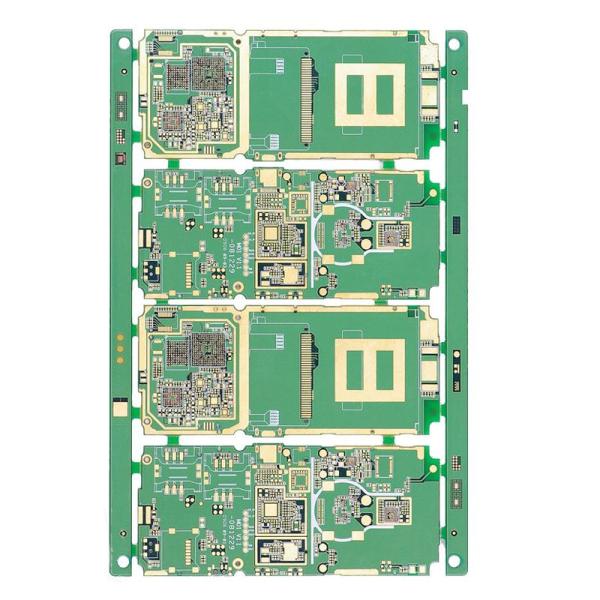

Multilayer Printed Circuit Board RF High Frequency PCBs Supplier Images
|
